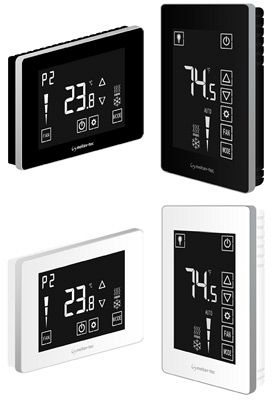

MTSC Touch Screen Thermostat

Touchscreen thermostat with backlit display for various HVAC applications with BACNET and MODBUS interface, 6 D/O, 2 A/O and 2 U/I.

The MTS Touch Screen is a stylish thermostat well-suited for commercial and residential applications.
It can control either Heat/Cool systems or Fan Coils (2-pipe or 4-pipe systems) and offers 3-fan speeds.

Features:
• Stylish designed sensitive touch screen display;
• Clear and easy icons for the operation functions;
• Easy configuration with DIP Switches and settings;
• Temperature readings from the thermostat or the External sensor.

I/O List:
• 6 D/O  - Maximum 3A each, 5A total
• 2 A/O  - 0-10V
• 2 U/I    - D/I or 0-10V input
• Touch, backlit display with adjustable dimming time and %
• Flush mount installation with a standard 3 gang box
• Optional extention cable (7 meters long) for wall mounting
• Optional colored frame
• IR receiver (optional) for remote control signal
• White or Black with optional colored frame
• ºC/ºF scale
