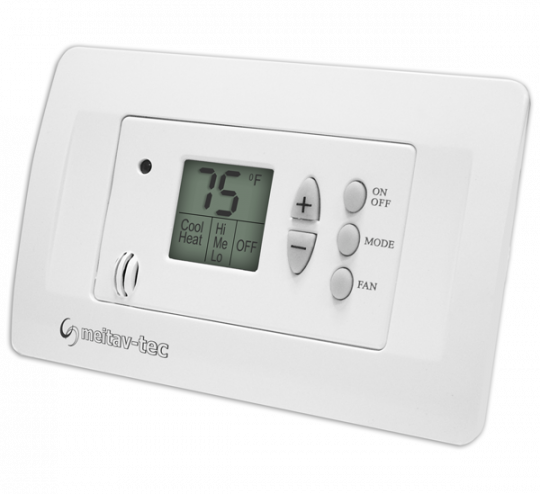

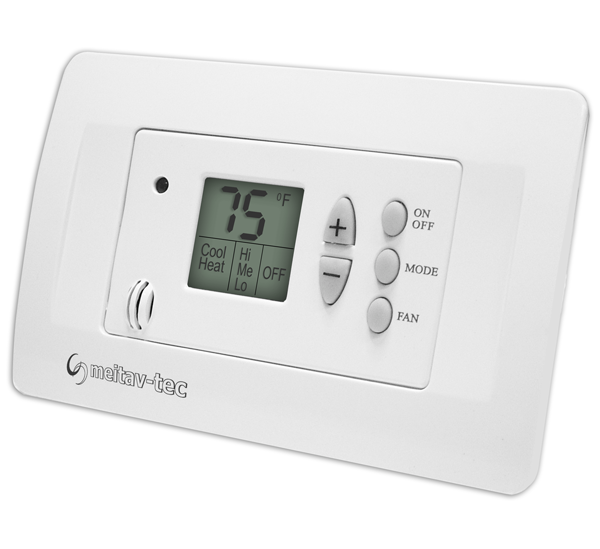

FMHC220-P-MDB01

Flush mount, 230VAC thermostat, for Fan Coil B.M.S. applications, with proportional outputs for Cool & Heat, 3 Fan Speeds and Modbus interface.

The FMHC220-P-FC-MDB01 is a distinguished, stand alone, proportional thermostat for 2-Pipe or 4-Pipe Fan Coil applications. Its Modbus communication protocol makes it also compatible for Building Management System (B.M.S.) applications.

It offers modular, user friendly configuration to best suit customer’s needs. Features, such as Set Point limits, dead zone or offset are adjustable while others as internal / external sensor 1 or 3 fan speed or auto-change-over are all selectable.

The FMHC220-P-FC-MDB01 is an esthetic, flush-mount thermostat which offers increased energy savings as well as comfort to the user.

Features:

Flush mount, 230VAC thermostat
2 proportional (0-10V) outputs for Cool & Heat
Modes: Cool/ Heat / Auto- Change-Over/ Fan Only
DIP switch selectable options:2Pipe or 4Pipe Fan Coil
1 or 3 fan speed
Auto-change-over sensor or Contact input
With or without auto-change-over
Set point & room temp. display or set-point
Auto-Fan
Internal /External sensor
Energy saving    –    cost    efficient, environmental friendly thermostat
Dead zone – 0…5°C
Set point temp. limits – 10…30°C
Offset – ±6°C
Lock / un-lock thermostat pushbuttons
Pushbutton beeper – option
Programmable MAC address – 1…99 addresses – dip switch configurable
Fits into Gewiss box
Remote control (RT03) – optional
